Our FRP (Fibre Reinforced Polymer) Un-Equal Angle profiles offer a modern, high-performance alternative to traditional steel, aluminium or PVC angle sections. Engineered for maximum safety, outstanding durability and a contemporary finish, these profiles are perfect for a broad array of applications—especially where resilience, impact resistance and full compliance with Australian standards are paramount. Designed to be easily integrated with numerous substrates and frameworks, FRP Un-Equal Angles ensure a secure and precise fit for both structural and finishing purposes. This high compatibility streamlines installation and results in a robust, maintenance-friendly system, further enhanced by FRP’s corrosion resistance and low upkeep demands.
Key Features & Benefits
- Corrosion Resistance: As with all our FRP products, these Un-Equal Angle profiles are immune to rust and corrosion, even under exposure to moisture, chemicals or saltwater. They are ideally suited for coastal, industrial and chemically aggressive environments.
- Lightweight Construction: FRP Un-Equal Angles are significantly lighter than metal equivalents, making transport, handling and installation easier while reducing on-site labour costs.
- Outstanding Strength-to-Weight Ratio: Despite their light weight, FRP profiles deliver excellent durability and impact resistance, ensuring dependable performance in high-traffic and demanding situations.
- Electrical & Thermal Insulation: Natural resistance to electrical conductivity and heat makes FRP Un-Equal Angles a safer choice in settings exposed to electrical hazards or temperature extremes.
- Safe, Smooth Profile: Precisely engineered surfaces and rounded edges help minimise snag and trip risks, delivering a clean, professional appearance—ideal for public spaces, commercial sites and busy walkways.
- Long-Lasting & Low Maintenance: Benefit from consistent, trouble-free use. FRP Un-Equal Angle profiles resist fading, cracking, warping and wear, even in harsh Australian sunlight and tough environmental conditions.
- Versatile Applications: Perfect for mining, marine, construction and infrastructure projects—anywhere a tough, visible Un-Equal Angle profile is required to enhance safety and satisfy standards.

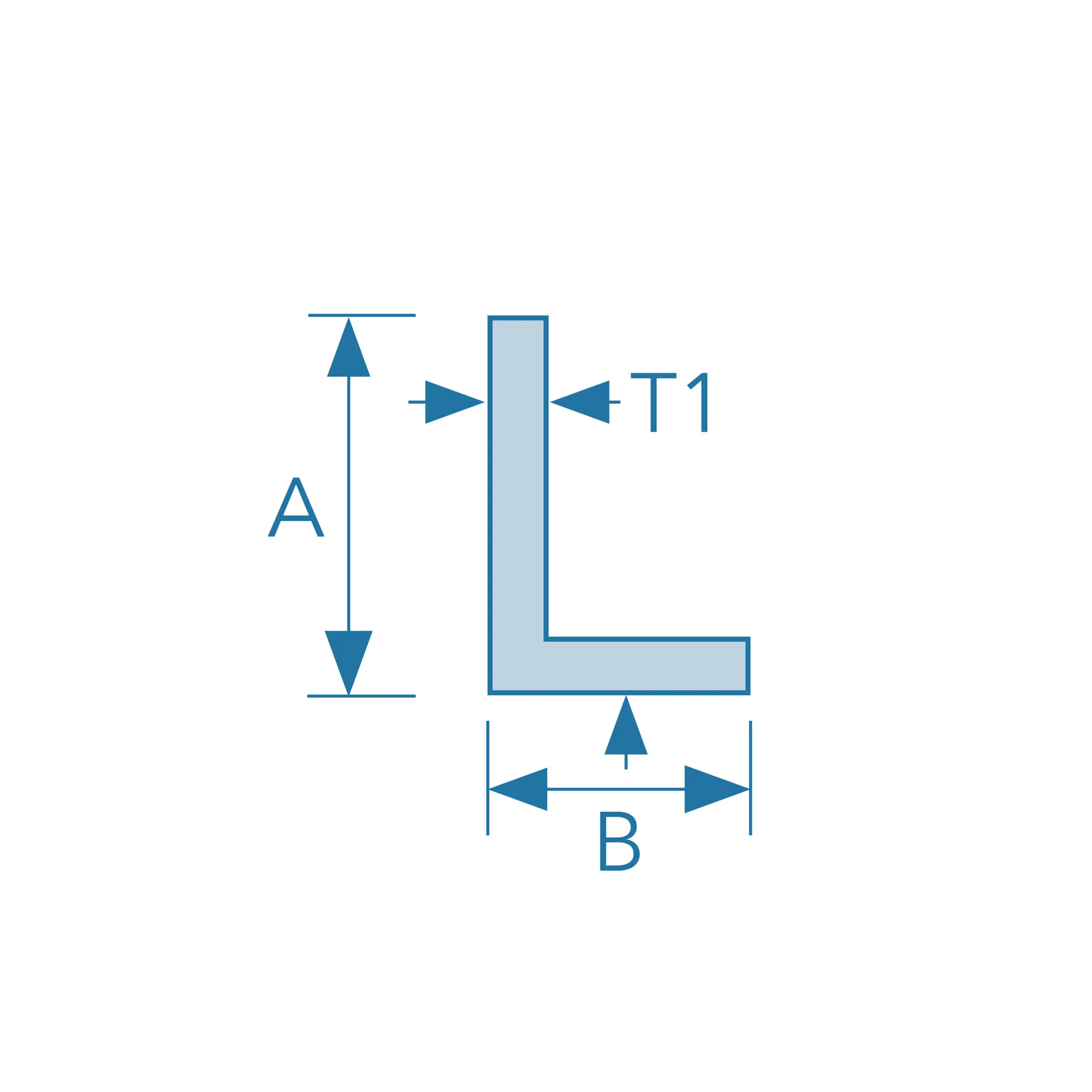

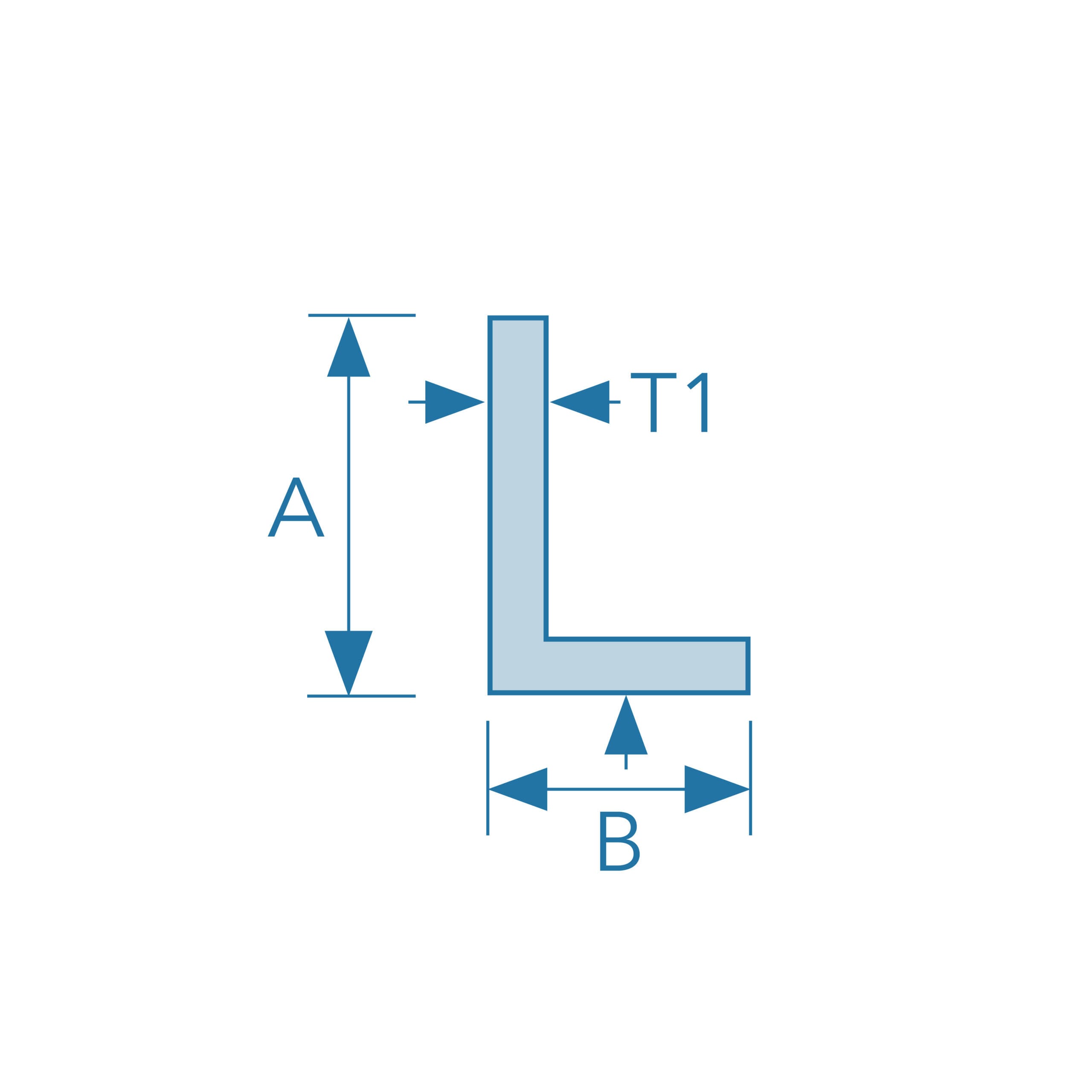

Un-Equal Angle Profile Options
Our FRP Un-Equal Angle are available in a range of sizes and thicknesses to accommodate diverse project requirements. These include:
| Profile | Type | Dimension (mm) | Weight |
|---|---|---|---|
| C Channel | A x B x T1 x T2 | (kg/m) | |
| UN | UN40x22x4.0 | 40 x 22 x 4.0 x 4.0 | 0.45 |
| UN | UN50x40x6.35 | 50 x 40 x 6.35 x 6.35 | 1.20 |
| UN | UN100x50x6.4 | 100 x 50 x 6.4 x 6.4 | 1.80 |
| UN | UN145x76x10.0 | 145 x 76 x 10.0 x 10.0 | 3.85 |
| UN | UN170x76x9.5 | 170 x 76 x 9.5 x 9.5 | 4.40 |
| UN | UN254x40x6.4 | 254 x 40 x 6.4 x 6.4 | 3.61 |
Applications
FRP Un-Equal Angle sections are highly versatile, suitable for a broad range of applications across multiple industries.
- Mining: Used for guarding and reinforcing walkways, access platforms and equipment areas exposed to corrosive materials—ensuring lasting safety and structural strength.
- Marine: Excellent for edge protection, structural reinforcement and finishing on wharves, pontoons and walkways exposed to saltwater and extreme weather, ensuring safety and durability.
- Construction & Infrastructure: Favoured for architectural features, safety barriers and structural upgrades where high-visibility, lightweight and robust Un-Equal Angle profiles are needed to satisfy safety codes and enhance aesthetics.
- Industrial & Utility Sites: Regularly specified for chemical plants, water treatment plants and substations—offering non-conductive properties and delivering safer solutions in hazardous settings.
- Fencing & Screening: Integrated into fencing and screening systems to provide durable support, clean lines and enhanced resilience. FRP Un-Equal Angles are ideal for secure barriers and privacy screens across various settings, combining safety with easy upkeep and design flexibility.
Specifications
Un-Equal Angle Structural Sections can be fabricated as needed. Custom sizing can be arranged, with state-of-the-art CNC fabrication guaranteeing each profile is crafted for an optimal fit and finish. All products comply with Australian standards and are rigorously tested for safety, durability and performance.
Why Choose FRP Un-Equal Angle?
If you need a reliable solution to improve safety in hazardous or high-traffic areas, want to reduce installation weight without compromising strength, or require a resilient, low-maintenance profile that offers both protection and visual appeal, our FRP Un-Equal Angle sections are an ideal choice. Purpose-built to withstand the diverse demands of Australian environments and supported by our skilled local team, these profiles deliver dependable performance, peace of mind and lasting value for your next project.
