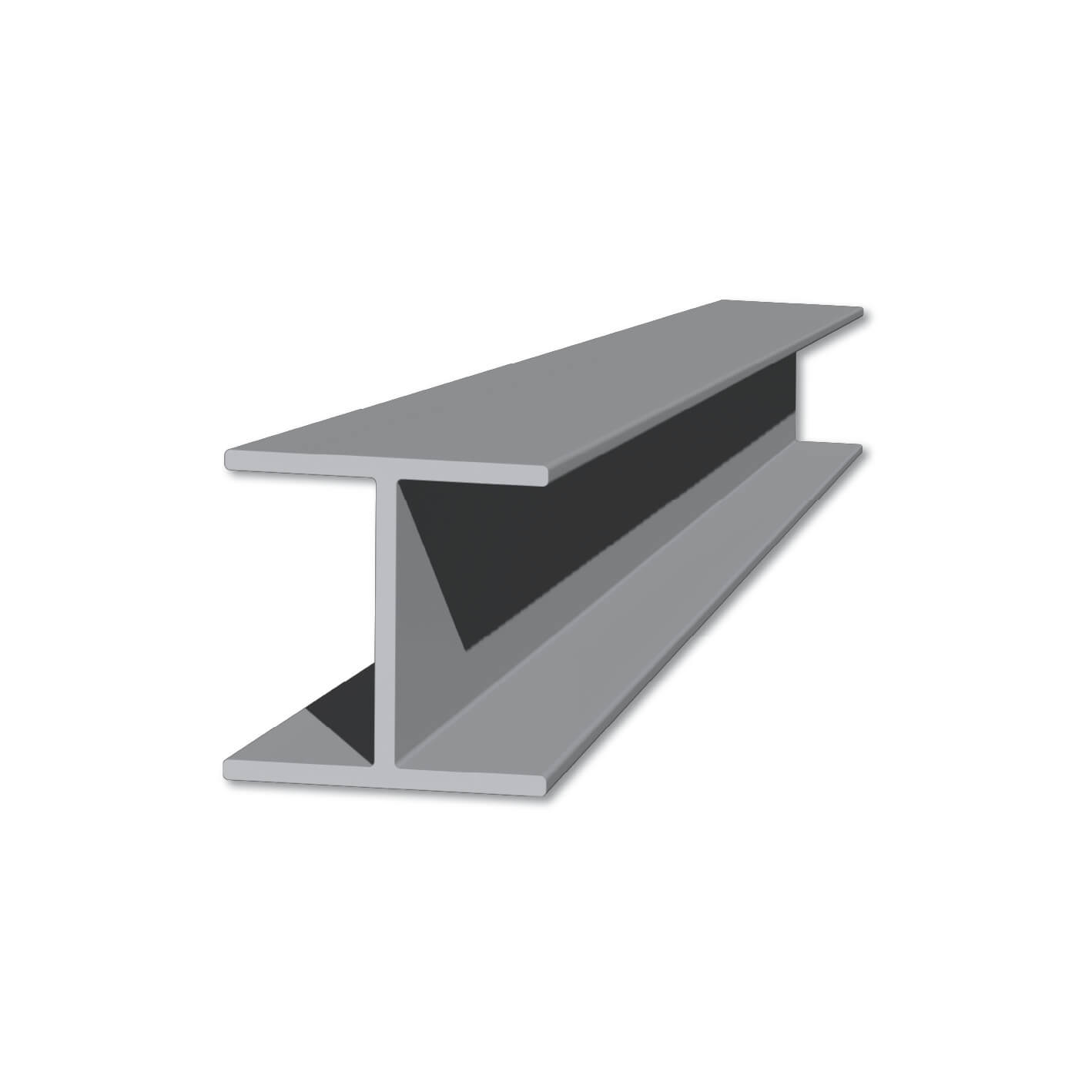

FRP H Beam
Our FRP (Fibre Reinforced Polymer) H Beam Structural Sections offer a robust, easy-to-install alternative to traditional steel, aluminium, or timber beams. Designed for enhanced safety, exceptional load-bearing performance, and a clean profile, these FRP H beams are perfect for structural frameworks, fabrication, and cladding applications—especially where enduring performance and reliability in tough Australian conditions are essential.
Key Features & Benefits
- Corrosion Resistance: Like all FRP products, our H beams are immune to rust and corrosion from moisture, chemicals, or saltwater, making them an excellent choice for coastal, industrial, and chemically aggressive sites.
- Lightweight Construction: Significantly lighter than steel, FRP H beams are straightforward to handle and install, reducing labour costs and improving safety during transport and assembly.
- Outstanding Strength-to-Weight Ratio: Despite their light weight, these beams deliver impressive structural strength and load-bearing capacity, suitable for a wide range of demanding applications.
- Electrical & Thermal Insulation: With inherent resistance to electricity and heat, FRP H beams provide added safety for electrical works and installations exposed to temperature extremes.
- Safer, Clean Profile: The H beam design offers smooth edges and surfaces, reducing snag hazards and injuries while creating a professional, streamlined appearance—ideal for public and high-traffic areas.
- Long-Lasting & Low Maintenance: Enjoy dependable performance year after year with minimal upkeep. These beams resist fading, cracking, warping, and wear, even under harsh Australian sunlight and heavy use.
- Versatile Applications: Perfect for load-bearing structures, frames, supports, protective barriers, and industrial linings wherever a strong, safe beam is required—across mining, marine, construction, and infrastructure projects.
H Beam Profile Options
FRP H Beams are available in a variety of thicknesses, widths, and lengths to suit your project’s specific requirements. These include:

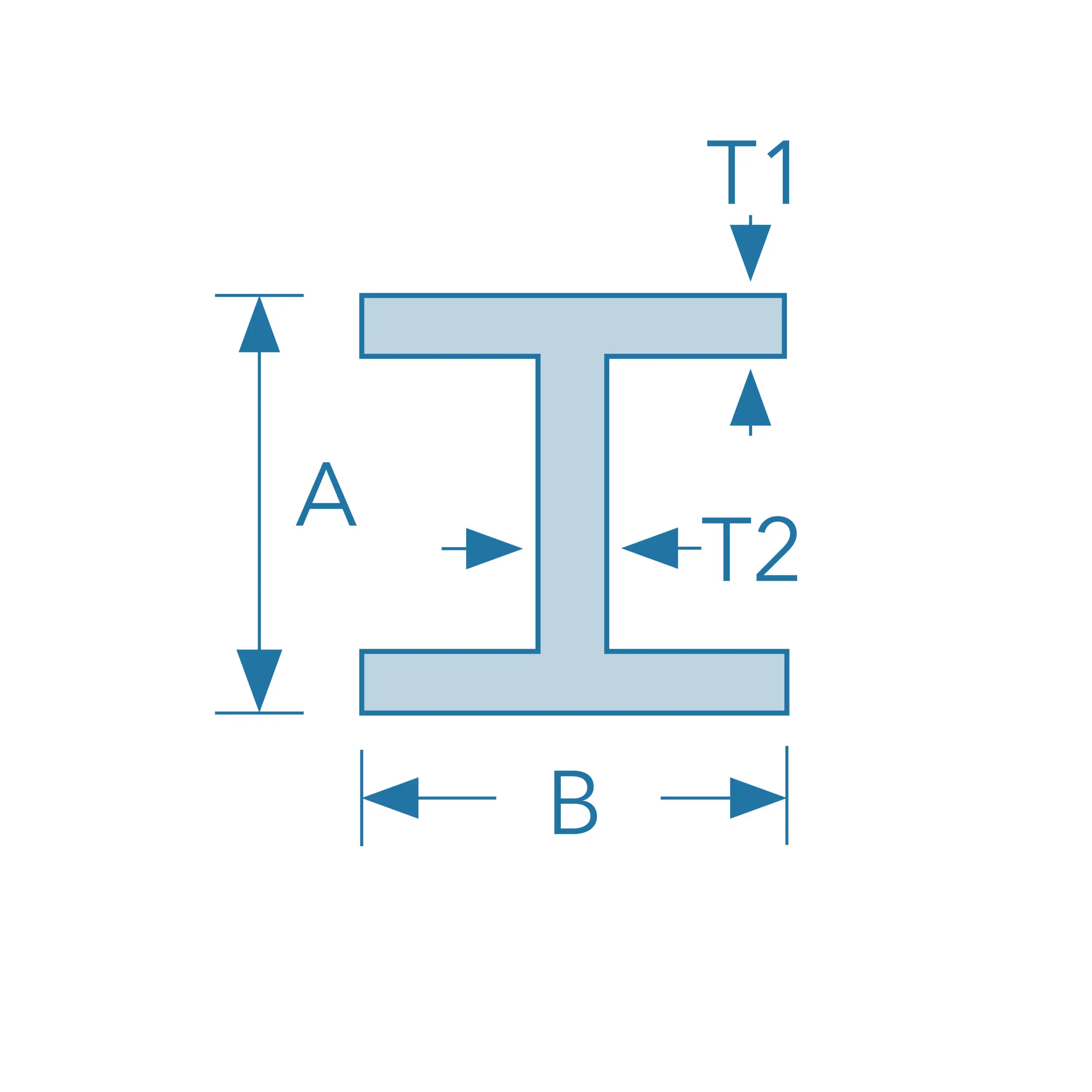

| Profile | Type | Dimension (mm) | Weight |
|---|---|---|---|
| H Beam | A x B x T1 x T2 | (kg/m) | |
| HB | HB76x76x6.4×6.4 | 76 x 76 x 6.4 x 6.4 | 2.67 |
| HB | HB102x102x6.4×6.4 | 102 x 102 x 6.4 x 6.4 | 3.59 |
| HB | HB102x102x8.0x8.0 | 102 x 102 x 8.0 x 8.0 | 4.50 |
| HB | HB152x152x6.4×6.4 | 152 x 152 x 6.4 x 6.4 | 5.43 |
| HB | HB152x152x9.5×9.5 | 152 x 152 x 9.5 x 9.5 | 8.10 |
| HB | HB203x203x6.4×6.4 | 203 x 203 x 6.4 x 6.4 | 10.80 |
| HB | HB203x203x9.5×9.5 | 203 x 203 x 9.5 x 9.5 | 14.36 |
| HB | HB203x203x12.7×12.7 | 203 x 203 x 12.7 x 12.7 | 7.50 |
| HB | HB254x254x9.5×9.5 | 254 x 254 x 9.5 x 9.5 | 13.60 |
| HB | HB254x254x12.7×12.7 | 254 x 254 x 12.7 x 12.7 | 18.04 |
| HB | HB305x305x12.7×12.7 | 305 x 305 x 12.7 x 12.7 | 21.50 |
Applications
FRP H Beam sections are highly versatile, suitable for a broad range of applications across multiple industries.
- Mining: Used for structural supports, framing, and protective barriers in areas with frequent movement or exposure to corrosive materials, FRP H beams maintain excellent durability and safety.
- Marine: Ideal for wharves, platforms, and walkways exposed to saltwater and weather, offering strong, reliable support and safe transitions in slippery or high-traffic environments.
- Construction & Infrastructure: Favoured for lightweight yet tough structural frameworks, safety barriers, and interfaces on floors and walls, the H beam profile enhances stability and provides a professional finish.
- Industrial & Utility Sites: Commonly specified for chemical plants, water treatment facilities, and electrical substations—providing both insulating properties and safer structural detailing in challenging or hazardous conditions.
Specifications
Custom sizing is available upon request, and with advanced CNC fabrication, GRP Australia ensures every beam is manufactured to your exact specifications for a flawless fit. All products comply with Australian standards and undergo rigorous testing to guarantee safety, durability, and top performance.
Why Choose FRP H Beams?
If your project involves hazardous or high-traffic environments, calls for weight reduction without sacrificing strength, or requires a durable, low-maintenance solution that also enhances user safety and appearance, our FRP H Beam Structural Sections are an outstanding choice. Select solutions are purpose-built for Australian conditions and supported by local expertise.
