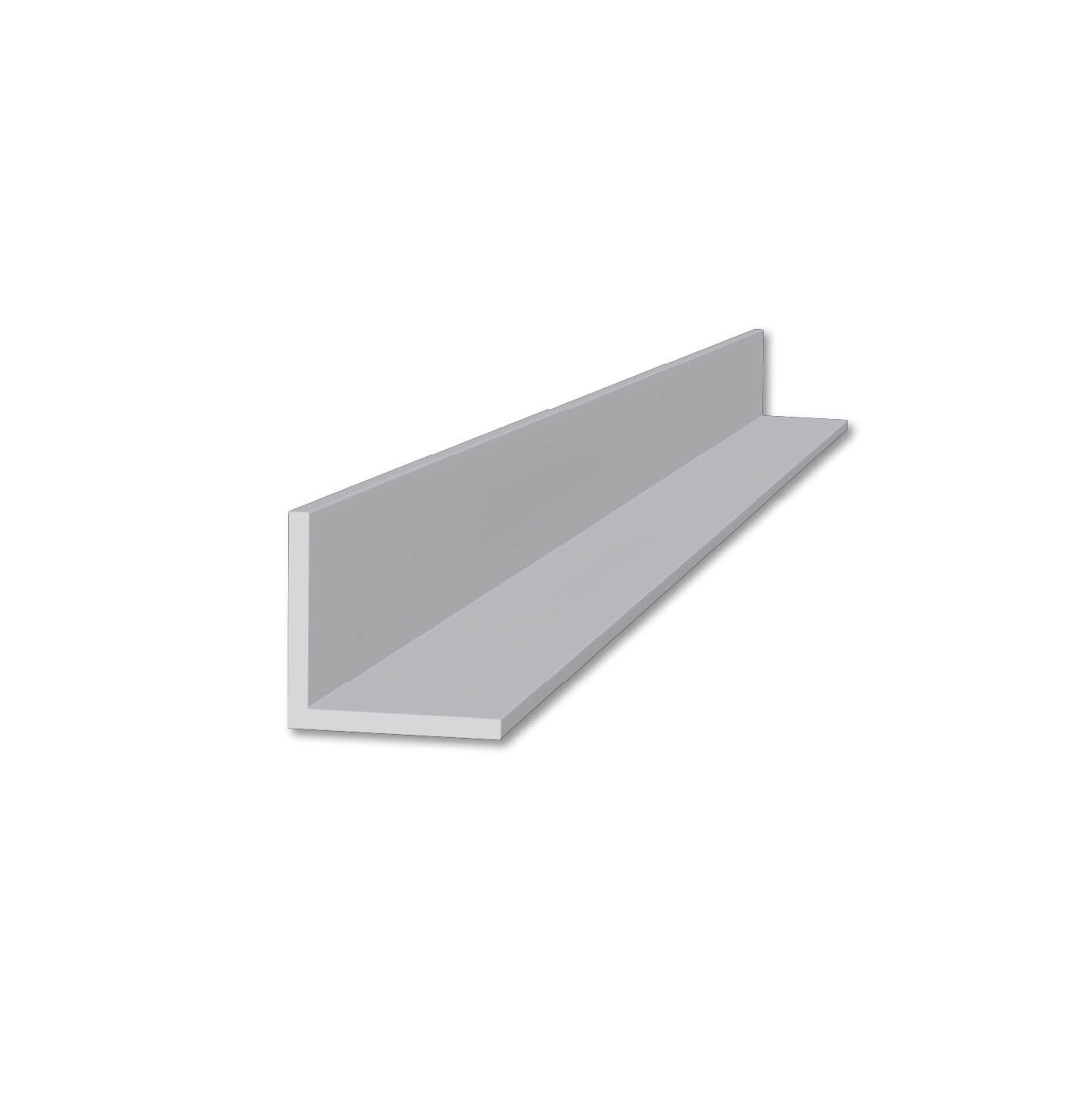

FRP Equal Angle
Our FRP (Fibre Reinforced Polymer) Equal Angle Structural Sections deliver a high-performance, reliable alternative to traditional steel, aluminium, and timber solutions, providing robust results under demanding Australian conditions. Engineered for durability and strength, these equal angles are perfectly suited for a diverse range of structural and fabrication uses.
Key Features & Benefits
- Corrosion Resistance: Unlike metal options, FRP Equal Angles won’t rust, corrode or break down when exposed to moisture, chemicals, or saltwater—making them ideal for coastal, industrial, and chemically harsh environments.
- Lightweight Construction: Considerably lighter than steel, FRP Equal Angles are straightforward to transport, move, and install, helping to cut down on labour costs and boost safety on-site.
- Excellent Strength-to-Weight Ratio: Despite being lightweight, these sections maintain excellent structural integrity and load-bearing performance.
- Electrical & Thermal Insulation: FRP naturally insulates against electricity and heat, providing extra safety for electrical installations or temperature-sensitive areas.
- Long-Lasting & Low Maintenance: Enjoy years of reliable use with little need for maintenance. FRP stands up to fading, cracking, and warping—even under the harsh Aussie sun.
- Versatile Applications: Commonly used in support frames, bracing, edge protection, walkways, platforms, and more, across sectors such as mining, marine, construction, and infrastructure.
Equal Angle Profile Options
Our FRP Equal Angle is available in a range of sizes and thicknesses to accommodate diverse project requirements. These include:

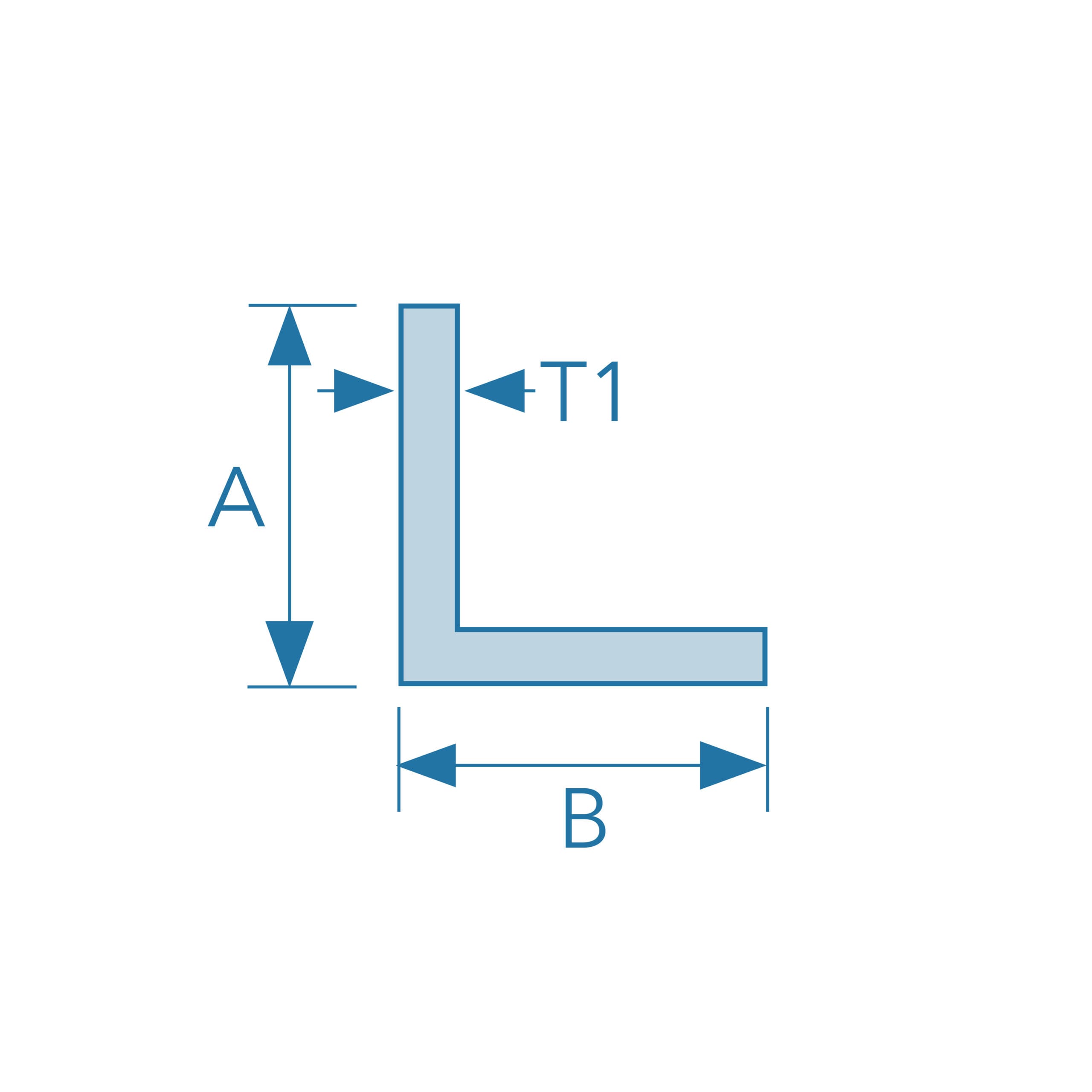

| Profile | Type | Dimension (mm) | Weight |
|---|---|---|---|
| Equal Angle | A x B x T1 x T2 | (kg/m) | |
| EA | EA25x25x3.2 | 25 x 25 x 3.2 x 3.2 | 0.33 |
| EA | EA25x25x6.4 | 25 x 25 x 6.4 x 6.4 | 0.56 |
| EA | EA30x30x5.0 | 30 x 30 x 5.0 x 5.0 | 0.57 |
| EA | EA32x32x4.0 | 32 x 32 x 4.0 x 4.0 | 0.42 |
| EA | EA38x38x5.0 | 38 x 38 x 5.0 x 5.0 | 0.68 |
| EA | EA38x38x6.4 | 38 x 38 x 6.4 x 6.4 | 0.85 |
| EA | EA50x50x3.2 | 50 x 50 x 3.2 x 3.2 | 0.62 |
| EA | EA50x50x6.4 | 50 x 50 x 6.4 x 6.4 | 1.14 |
| EA | EA76x76x4.8 | 76 x 76 x 4.8 x 4.8 | 1.38 |
| EA | EA76x76x6.4 | 76 x 76 x 6.4 x 6.4 | 1.77 |
| EA | EA76x76x9.5 | 76 x 76 x 9.5 x 9.5 | 2.57 |
| EA | EA76x76x12.7 | 76 x 76 x 12.7 x 12.7 | 3.40 |
| EA | EA101x101x6.4 | 101 x 101 x 6.4 x 6.4 | 2.50 |
| EA | EA101x101x8.0 | 101 x 101 x 8.0 x 8.0 | 2.95 |
| EA | EA101x101x9.5 | 101 x 101 x 9.5 x 9.5 | 3.48 |
| EA | EA101x101x12.7 | 101 x 101 x 12.7 x 12.7 | 4.57 |
| EA | EA152x152x6.4 | 152 x 152 x 6.4 x 6.4 | 3.62 |
| EA | EA152x152x9.5 | 152 x 152 x 9.5 x 9.5 | 5.42 |
| EA | EA152x152x12.7 | 152 x 152 x 12.7 x 12.7 | 7.01 |
Applications
FRP Equal Angle sections are highly adaptable, making them suitable for a wide array of uses across various industries.
- In mining, FRP Equal Angles are relied on for robust structural bracing, support frames, and equipment platforms due to their corrosion resistance and minimal maintenance demands.
- The marine sector values FRP Equal Angles for their resilience to saltwater and tough weather, often using them in dock structures, edge trims, and handrails.
- Construction and infrastructure projects benefit from FRP Equal Angles’ lightweight yet sturdy properties for frameworks, stair stringers, and protective barriers.
- Frequently chosen for chemical plants, water treatment sites, and electrical substations thanks to their superior insulating abilities and resistance to chemical attack.
Specifications
Custom lengths are available on request. Using advanced CNC technology, GRP Australia achieves precise fabrication of equal angle profiles, ensuring each section meets your exact requirements efficiently. All our FRP Equal Angles comply with Australian standards and undergo stringent testing for safety, durability, and performance.
Why Choose FRP Equal Angle?
Whether you’re working in aggressive environments, aiming to reduce structure weight without compromising on strength, or simply want a product that’s built to last and requires little ongoing attention, our FRP Equal Angle Structural Sections are the smart pick. Choose a solution made for Australian conditions and supported by local expertise.
